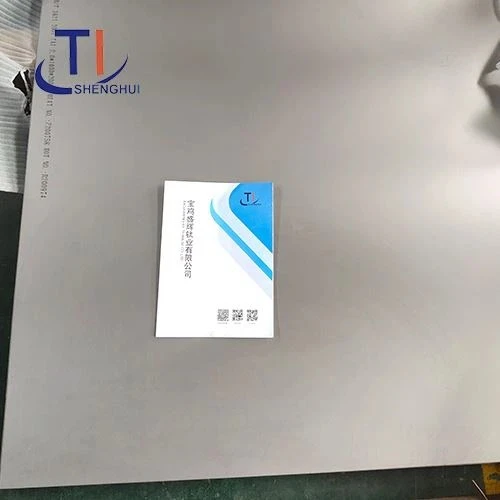

ASTM B265 GR12 Titanium Plate
1.ASTM B265 GR12 Titanium plate is a high-strength and corrosion-resistant metal material that is commonly used in various industries.
2.It is specified by the American Society for Testing and Materials (ASTM) and is made from a combination of titanium, nitrogen, and nickel.
3.The GR12 designation refers to the grade 12 titanium alloy, which is known for its excellent weldability and ductility.
Product Introduction
Chemical composition of ASTM B265 GR12 Titanium plate
|
Grade |
Chemical composition group |
Main ingredients |
Impurities, not greater than |
||||||||
|
Ti |
Mo |
Ni |
Fe |
C |
N |
H |
O |
Other elements |
|||
|
Single |
Total |
||||||||||
|
GR12 |
Ti-0.3Mo-0.8Ni |
Allowance |
0.2~0.4 |
0.6~0.9 |
0.30 |
0.08 |
0.03 |
0.015 |
0.25 |
0.1 |
0.40 |
Mechanical properties of ASTM B265 GR12 Titanium plate
|
Grade |
Mechanical properties at room temperature, not less than |
||
|
Tensile strength Rm/Mpa |
Elongation strength Rp0.2/Mpa |
Section shrinkage Z/% |
|
|
GR12 |
483 |
345 |
18 |
Applications of ASTM B265 GR12 Titanium Plate
1.Aerospace industry: ASTM B265 GR12 titanium plate is commonly used in the aerospace industry due to its high strength-to-weight ratio, corrosion resistance, and excellent thermal conductivity. It is used in aircraft structural components, engine components, and landing gear.
2.Medical industry: Titanium is biocompatible, which means it is not rejected by the body's immune system. As a result, ASTM B265 GR12 titanium plate is used in medical implants such as hip and knee replacements, dental implants, and pacemakers.
3.Chemical processing industry: ASTM B265 GR12 titanium plate is resistant to a wide range of corrosive chemicals, making it ideal for use in the chemical processing industry. It is used in heat exchangers, reaction vessels, and piping systems.
4.Marine industry: ASTM B265 GR12 titanium plate is resistant to saltwater corrosion, making it ideal for use in marine applications such as shipbuilding, offshore oil drilling, and underwater structures.
5.Sports equipment: Titanium is known for its strength and durability, which makes it an ideal material for use in sports equipment such as golf clubs, tennis rackets, and bicycle frames.
6.Automotive industry: ASTM B265 GR12 titanium plate is used in the automotive industry for components such as exhaust systems, suspension components, and engine parts due to its high strength-to-weight ratio and corrosion resistance.
