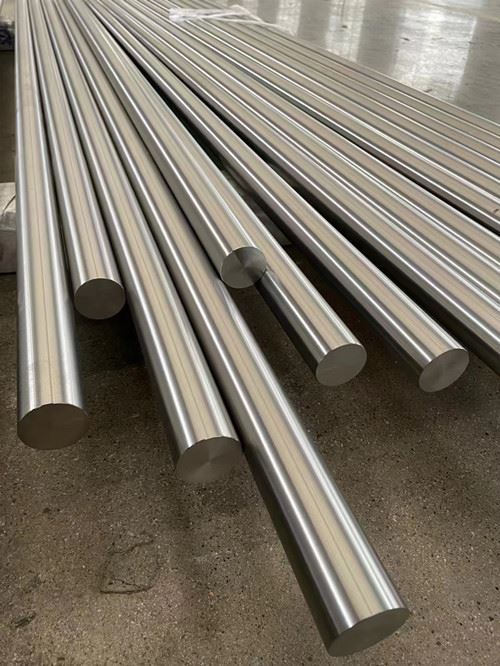

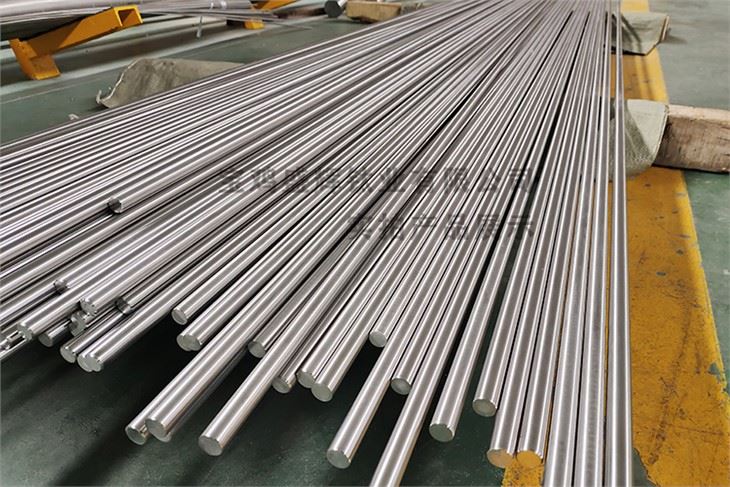

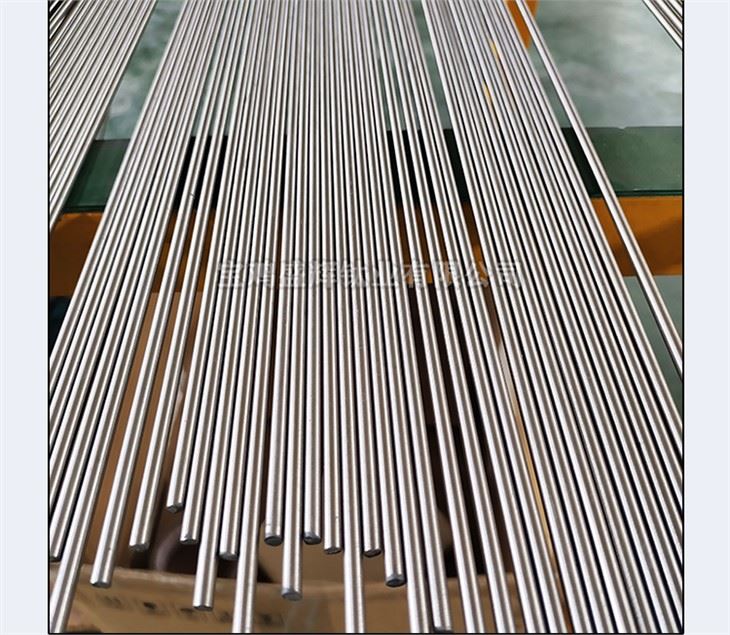

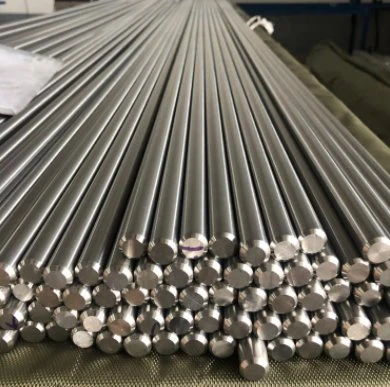

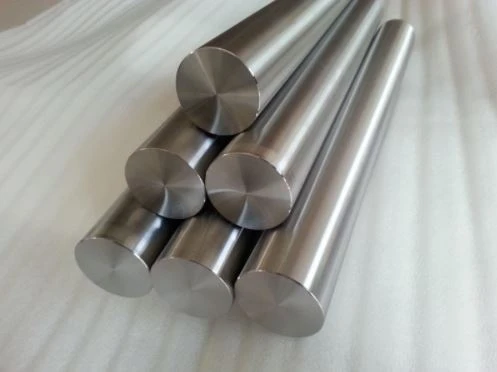

GR9 Titanium Rod

TA18 titanium rod, also known as half TC4 titanium rod, international grade GR9 titanium rod

Chemical composition: AL: 3.5_4.5 V: 1.8-2.5 Because the metal elements aluminum and vanadium are close to TC4, they are also called semi-TC4

Its strength and hardness are between those of pure titanium and TC4, and it is easier to process than titanium alloy TC4, and it is currently second only to TC4 in its wide application.

Titanium alloy use

Titanium alloy has high strength and low density, good mechanical properties, good toughness and corrosion resistance. In addition, the process performance of titanium alloy is poor, cutting is difficult, and it is very easy to absorb impurities such as hydrogen, oxygen, nitrogen and carbon during hot processing. There is also poor wear resistance and complex production process. The industrial production of titanium started in 1948. The need for the development of the aviation industry makes the titanium industry develop at an average annual growth rate of about 8%. The world's annual output of titanium alloy processing materials has reached more than 40,000 tons, and there are nearly 30 types of titanium alloys. The most widely used titanium alloys are Ti-6Al-4V (TC4), Ti-5Al-2.5Sn (TA7) and industrially pure titanium (TA1, TA2 and TA3).

Titanium alloys are mainly used to make aircraft engine compressor components, followed by rockets, bombs and structural parts of high-speed aircraft. In the mid-1960s, titanium and its alloys have been used in general industry for making electrodes in the electrolysis industry, condensers in power stations, heaters in petroleum refining and seawater desalination, and environmental pollution control devices. Titanium and its alloys have become a corrosion-resistant structural material. In addition, it is also used in the production of hydrogen storage materials and shape memory alloys.

high strength

The density of titanium alloy is generally about 4.51g/cm3, which is only 60% of steel. The density of pure titanium is close to that of ordinary steel. Some high-strength titanium alloys exceed the strength of many alloy structural steels. Therefore, the specific strength (strength/density) of titanium alloy is much greater than that of other metal structural materials, and parts with high unit strength, good rigidity and light weight can be produced. Titanium alloys are used in aircraft engine components, skeletons, skins, fasteners and landing gear.

high thermal strength

The operating temperature is several bai degrees higher than that of aluminum alloys, and the required strength can still be maintained at moderate temperatures, and it can work for a long time at a temperature of 450 to 500 °C. The specific strength of aluminum alloy decreases significantly at 150 °C. The working temperature of titanium alloy can reach 500 ℃, and the working temperature of aluminum alloy is below 200 ℃.

good corrosion resistance

Titanium alloy works in humid atmosphere and seawater medium, and its corrosion resistance is much better than stainless steel; its resistance to pitting corrosion, acid corrosion, and stress corrosion is particularly strong; it is resistant to alkali, chloride, chlorine, organic substances, nitric acid, sulfuric acid etc. have excellent corrosion resistance. However, titanium has poor corrosion resistance to media with reducing oxygen and chromium salts.

Good low temperature performance

Titanium alloys can still maintain their mechanical properties at low and ultra-low temperatures. Titanium alloys with good low temperature performance and extremely low interstitial elements, such as TA7, can maintain a certain plasticity at -253 °C. Therefore, titanium alloy is also an important low-temperature structural material.

high chemical activity

Titanium has high chemical activity and produces strong chemical reactions with O, N, H, CO, CO2, water vapor, ammonia, etc. in the atmosphere. When the carbon content is greater than 0.2%, a hard TiC will be formed in the titanium alloy; when the temperature is high, a hard surface layer of TiN will also be formed when it interacts with N; when the temperature is above 600 ℃, titanium absorbs oxygen to form a hardened layer with high hardness ; Increased hydrogen content will also form an embrittlement layer. The depth of the hard and brittle surface layer produced by absorbing gas can reach 0.1 to 0.15 mm, and the hardening degree is 20% to 30%. The chemical affinity of titanium is also large, and it is easy to adhere to the friction surface.

Small thermal conductivity

The thermal conductivity of titanium λ=15.24W/(mK) is about 1/4 of nickel, 1/5 of iron, and 1/14 of aluminum, and the thermal conductivity of various titanium alloys is about 50% lower than that of titanium. The elastic modulus of titanium alloy is about 1/2 of that of steel, so its rigidity is poor and it is easy to deform. It is not suitable to make slender rods and thin-walled parts. times, resulting in severe friction, adhesion, and adhesive wear on the rear surface of the tool

Titanium is a new type of metal. The performance of titanium is related to the content of impurities such as carbon, nitrogen, hydrogen, and oxygen. The purest titanium iodide has an impurity content of no more than 0.1%, but it has low strength and high plasticity. The properties of 99.5% industrial pure titanium are: density ρ=4.5g/cm3, melting point 1725℃, thermal conductivity λ=15.24W/(mK), tensile strength σb=539MPa, elongation δ=25%, section Shrinkage rate ψ=25%, elastic modulus E=1.078×105MPa, hardness HB195.
