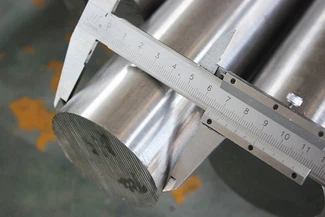

GR2 Titanium Bar in stock
1.Factory direct supply, tolerance is small.
2.Size specification can be customized according to customer requirement.
3.To provide high-percision light titanium bars.
Product Introduction
Description Of GR2 Titanium Bar
Materials: Titanium
Grade: GR1; GR2; GR3; GR7; GR12
Standard: GB/T2965-2007; GB/T13810-2007; ASTM B348; ASTMF136
Product uses: widely used in chemical and petroleum equipment, aerospace equipment, power equipment and so on
Size: Φ(4mm-300mm) * L≦6000 (Customized dimension and machining is supported)
Chemical composition Of GR2 Titanium Bar
|
Grade |
Chemical composition group |
Main ingredients |
Impurities, not greater than |
||||||
|
|
|
Ti |
Fe |
C |
N |
H |
O |
Other elements |
|
|
|
|
|
|
|
|
|
|
Single |
Total |
|
GR2 |
Industrial Titanium |
Allowance |
0.30 |
0.08 |
0.03 |
0.015 |
0.25 |
0.1 |
0.40 |
Mechanical properties Of GR2 Titanium Bar
|
Grade |
Mechanical properties at room temperature, not less than |
|||
|
|
Tensile strength Rm/Mpa |
Elongation strength Rp0.2/Mpa |
Section elongation A/% |
Section shrinkage Z/% |
|
GR2 |
400 |
275 |
20 |
30 |
Industrial titanium is a kind of dense metal titanium containing not less than 99% titanium and a small amount of impurities such as Fe, C, O, N and H. GR2 is a low content titanium alloy with mechanical and chemical properties similar to stainless steel.
Features Of GR2 Titanium Bar
GR2 is the most widely used in industry, mainly used in the working temperature below 350 degrees, the force is not big but the requirements of high plastic stamping parts and corrosion-resistant structural parts, such as aircraft skeleton; Marine corrosion resistant pipes, valves, pumps and hydrofoils; chemical heat exchangers, pump bodies, distillation columns, coolers, ion pumps, compressor valves, etc. .
About Us
Baoji Shenghui Titanium Industry Co., Ltd. is a comprehensive enterprise in GR2 Titanium bar melting, processing, production, sales, R&D. Our company not only guarantee the quality of products, but also provide good after-sales service.
