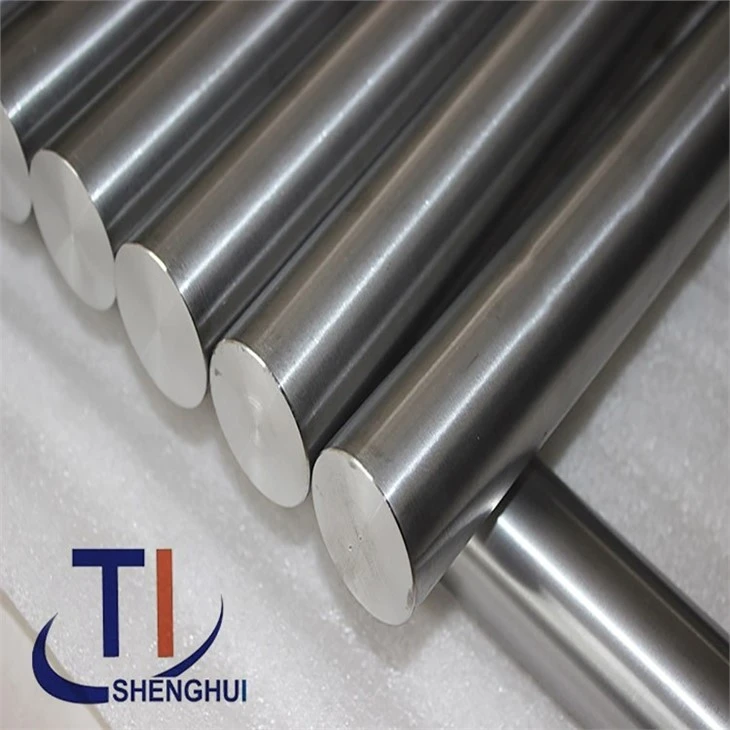

ASTM B348 GR5 Titanium Bar
1.GR5 is a medium strength (α + β) two-phase titanium alloy containing 6% α-stable AL and 4% β-stable V.
2.GR5 has excellent corrosion resistance, small density, high specific strength.
3.GR5 has good toughness and weldability.
Product Introduction
Chemical Composition Of ASTM B348 GR5 Titanium Bar
|
Grade |
Chemical composition group |
Main ingredients |
Impurities, not greater than |
||||||||
|
Ti |
Al |
V |
Fe |
C |
N |
H |
O |
Other elements |
|||
|
Single |
Total |
||||||||||
|
GR5 |
Ti-6Al-4V |
Allowance |
5.5~6.75 |
3.5~4.5 |
0.30 |
0.08 |
0.05 |
0.015 |
0.20 |
0.1 |
0.40 |
Mechanical Properties Of ASTM B348 GR5 Titanium Bar
|
Grade |
Mechanical properties at room temperature, not less than |
|||
|
Tensile strength Rm/Mpa |
Elongation strength Rp0.2/Mpa |
Section elongation A/% |
Section shrinkage Z/% |
|
|
GR5 |
895 |
825 |
10 |
25 |
Performance Of ASTM B348 GR5 Titanium Bar
GR5 titanium bar, also known as Ti-6Al-4V, is a titanium alloy that is widely used in various industries due to its high strength, low density, and excellent corrosion resistance. Here are some performance characteristics of GR5 titanium bar:
1. High strength: GR5 titanium bar has a high strength-to-weight ratio, making it ideal for applications that require strength without adding too much weight.
2. Excellent corrosion resistance: Titanium has excellent corrosion resistance, making GR5 suitable for use in harsh environments.
3. Lightweight: Titanium is almost half the weight of steel, making it an excellent choice for applications that require strength without adding weight.
4. Biocompatible: Titanium is biocompatible, which means it can be used in medical implants and other medical devices.
5. Weldable: GR5 titanium bar can be easily welded using different methods such as TIG welding or resistance welding.
6. High-temperature resistance: Titanium has a high melting point and can withstand high temperatures, making it suitable for use in high-temperature applications.
Overall, GR5 titanium bar has exceptional physical and mechanical properties that make it suitable for various industrial applications.
About Us
Baoji Shenghui Titanium Industry Co., Ltd. is a comprehensive enterprise in ASTM B348 GR5 titanium bar melting, processing, production, sales, R&D. Our advantages: Cost-performance ratio is high and price is cheap; Strong processing ability and fast production speed; The quality is guaranteed.
