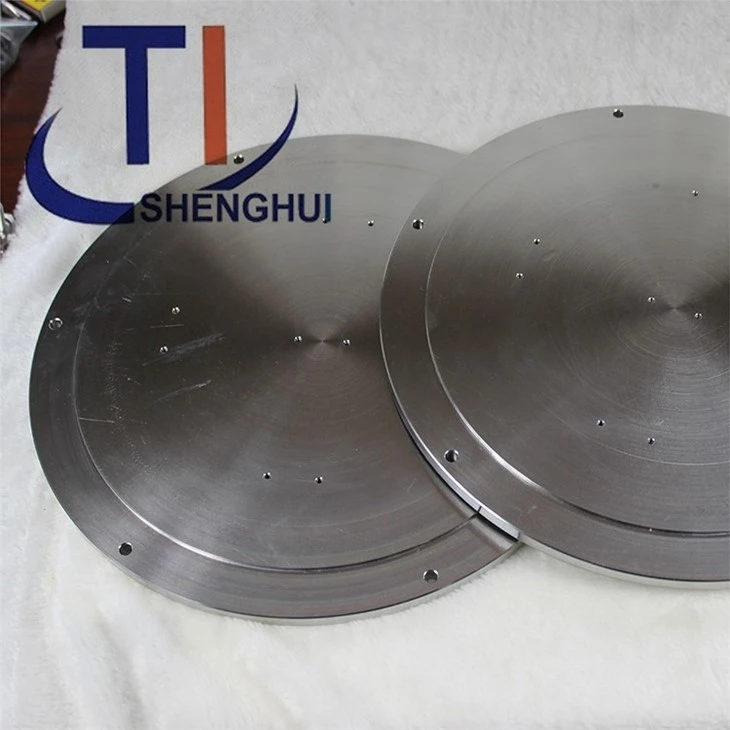

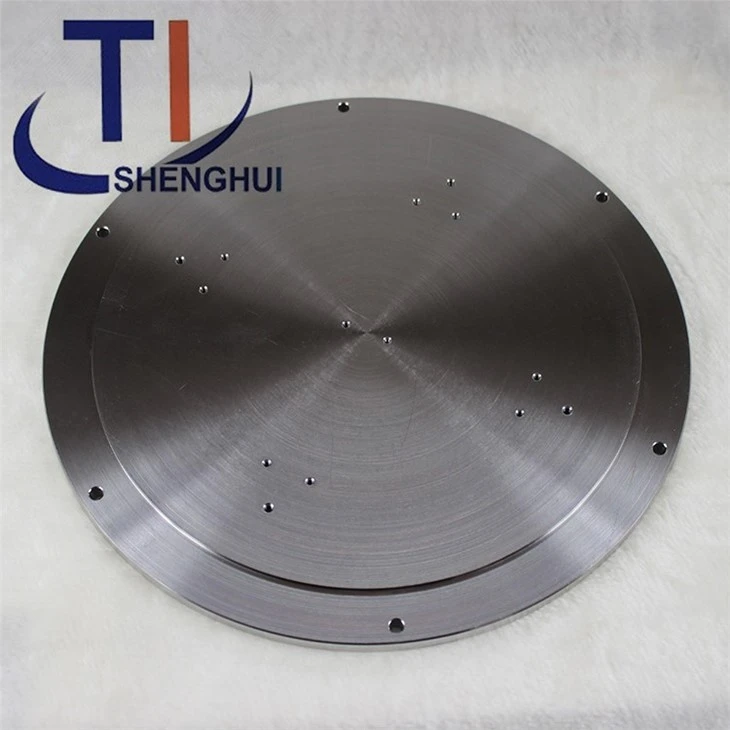

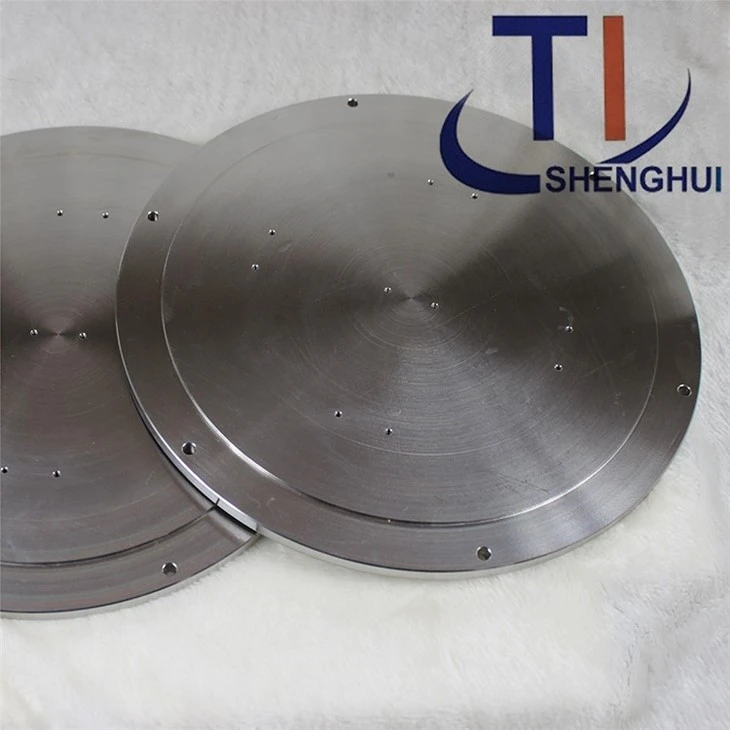

ISO 7005-1 Titanium Shaped Flanges
1.ISO 7005-1 is a standard specification for titanium shaped flanges used in industrial applications.
2.These flanges are designed to connect piping systems of different shapes and sizes securely.
3.They are constructed from high-quality titanium alloys, which make them highly durable and resistant to corrosion even in extreme environments.
Product Introduction
Processing process of ISO 7005-1 Titanium Shaped Flanges
1. Material selection: The first step is to select the appropriate titanium alloy for the specific application and requirements of the flange.
2. Cutting: Next, the titanium material is cut into the desired shape using a CNC cutting machine or laser cutting machine.
3. Machining: The rough-shaped titanium flanges are then machined to achieve precise dimensions and accurate tolerances. CNC machining is typically used for this step.
4. Surface finishing: After machining, the flanges' surfaces are smoothed, polished, and cleaned to remove any burrs or impurities using methods such as sandblasting, vibratory finishing, or chemical cleaning.
5. Drilling and tapping: The flanges are then drilled and tapped to create the necessary bolt holes and threads.
6. Testing: To ensure that the flanges meet the required standards, they are subjected to various tests such as dimensional inspection, pressure testing, and non-destructive testing.
7. Final inspection and packaging: Finally, the flanges are inspected one last time to ensure they meet all quality requirements before being carefully packaged and shipped to the customer.
ISO 7005-1 Standard Requirements for Titanium Shaped Flanges
ISO 7005-1 is a standard that specifies the requirements for titanium shaped flanges to be used in pressure piping systems. The standard covers a range of parameters including material requirements, dimensions, surface finish, markings and testing requirements.
The following is a detailed list of the ISO 7005-1 standard requirements for titanium shaped flanges:
1. Material Requirements:
The flanges shall be made of commercially pure titanium or titanium alloy material
The chemical composition of the material shall be within the ranges specified in the standard
The material shall conform to the physical and mechanical properties specified in the standard
2. Dimensions:
The standard covers a range of sizes for titanium shaped flanges, ranging from DN 15 (NPS 1/2) to DN 1200 (NPS 48)
The flanges shall be manufactured to the specified dimensional requirements, including flange facing, bolt circle diameter, and height
The flanges shall be designed in accordance with recognized engineering principles
3. Surface Finish:
The flange surfaces shall be smooth and free from cracks, porosity, and other surface defects
Surface roughness shall be in accordance with the specified requirements for the flange facing
The surface finish shall be uniform and consistent across the flange surface
4. Markings:
Each flange shall be permanently marked with the following information:
- Manufacturer's name or trademark
- Material grade
- Flange size and pressure rating
The markings shall be located in a visible and accessible location on the flange
5. Testing Requirements:
The flanges shall be subjected to non-destructive testing (NDT) to ensure conformity with the standard specifications
NDT methods can include visual inspection, ultrasonic testing, magnetic particle testing, or radiographic testing
The manufacturer shall ensure that all flanges meet the specified NDT requirements before delivery
