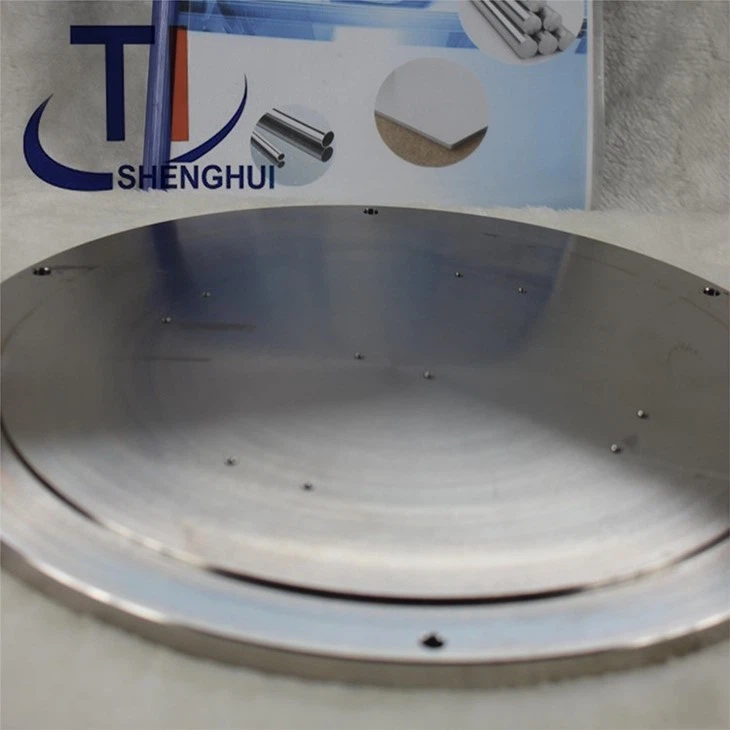

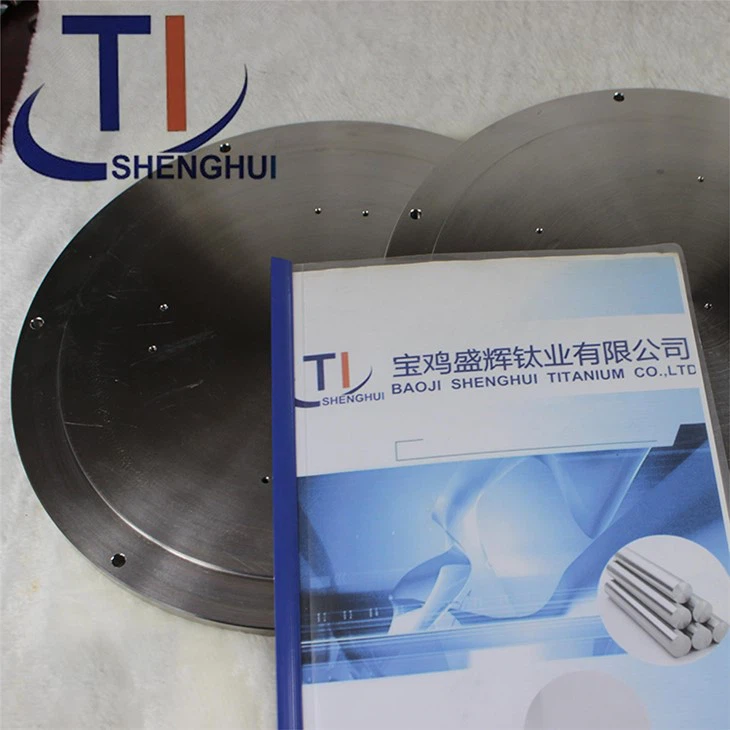

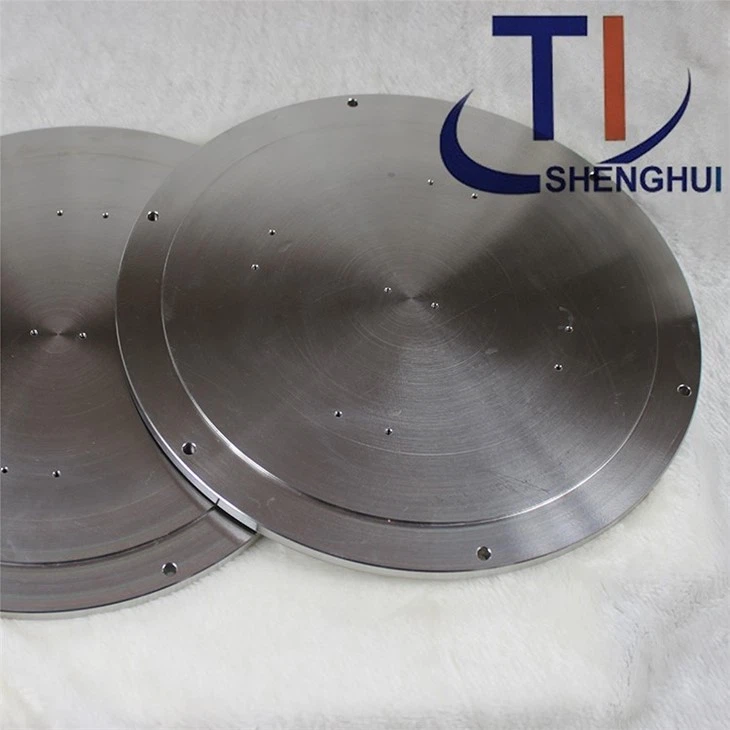

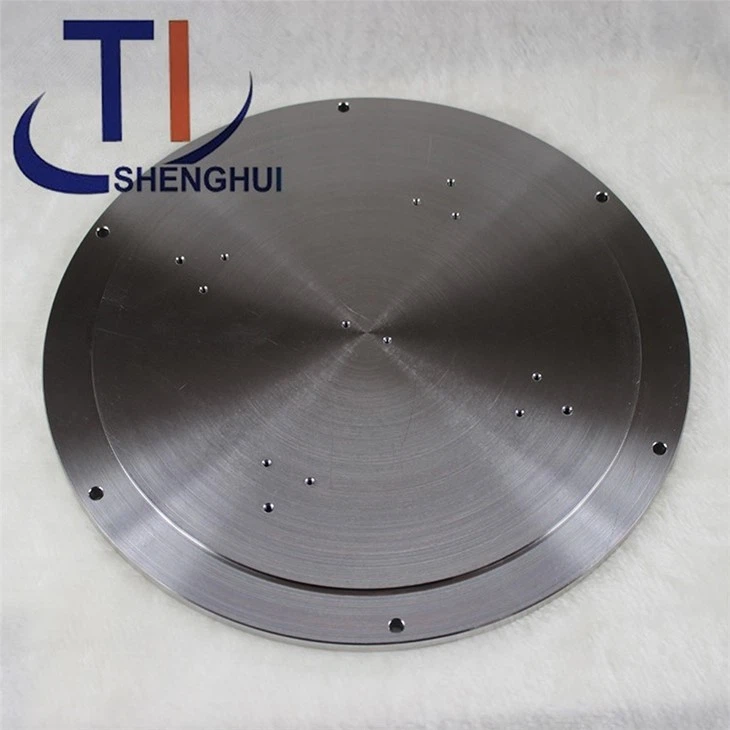

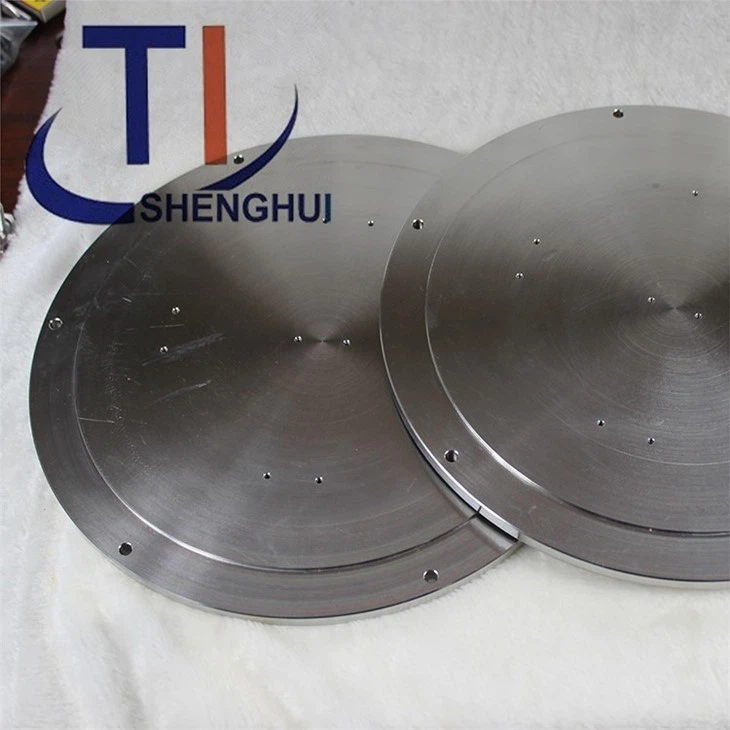

DIN 2631 Titanium Shaped Flanges
1.DIN 2631 Titanium Shaped Flanges are a type of specialized flange designed to be used in complex piping systems.
2.They are made from high-grade titanium, which offers excellent corrosion resistance and durability.
3.These flanges feature unique shapes and dimensions that are specifically engineered to fit with other components in the piping system and facilitate optimal flow.
Product Introduction
Description of DIN 2631 Titanium Shaped Flanges
DIN 2631 is a standard that specifies the dimensions and technical requirements for titanium shaped flanges used in piping systems. These flanges have a unique shape that is designed to fit a specific type of pipe or fitting.
The flange itself is made from titanium, a highly corrosion-resistant metal that is commonly used in applications where resistance to chemical and environmental degradation is important. The flange is fabricated from a solid piece of titanium and is machined to the specific dimensions specified in the DIN 2631 standard.
The flange features a raised sealing surface that is designed to seal against a gasket or sealant material. The raised sealing surface helps to distribute the load and maintain a tight seal, even under high-pressure conditions. The flange also has bolt holes that are evenly spaced around the circumference of the flange. These holes are used to attach the flange to the pipe or fitting using bolts and nuts.
One of the unique features of the DIN 2631 titanium shaped flange is the flange face design. The flange face is shaped in a conical fashion, with the largest diameter being at the outer edge of the flange. This design helps to reduce the risk of damage to the flange face during installation and removal. It also helps to ensure a tight seal by creating a positive stop for the gasket or sealant material.
DIN 2631 titanium shaped flanges are specialized flanges used in piping systems that feature a unique shape and design optimized for corrosion resistance, strength, and sealing performance.
Features of DIN 2631 Titanium Shaped Flanges
1. Material: DIN 2631 Titanium Shaped Flanges are made up of high-quality titanium, which is known for its exceptional properties.
2. Pressure Rating: DIN 2631 Titanium Shaped Flanges are suitable for use in high-pressure systems, and they have a pressure rating of PN6, PN10, PN16, PN25, and PN40.
3. Size Range: DIN 2631 Titanium Shaped Flanges are available in a wide range of sizes, from DN10 to DN2000.
4. Design Standards: DIN 2631 Titanium Shaped Flanges are designed and manufactured to comply with the international standard DIN 2631.
5. Corrosion Resistance: Titanium is known for its exceptional resistance to corrosion, and thus DIN 2631 Titanium Shaped Flanges are highly corrosion-resistant.
6. Heat Resistance: DIN 2631 Titanium Shaped Flanges can withstand high temperatures and have excellent thermal stability.
7. Easy to Install: DIN 2631 Titanium Shaped Flanges are easy to install and require minimal maintenance.
8. Long Lifespan: Due to their corrosion and heat resistance, DIN 2631 Titanium Shaped Flanges have a long lifespan and can be used in various industrial applications.
