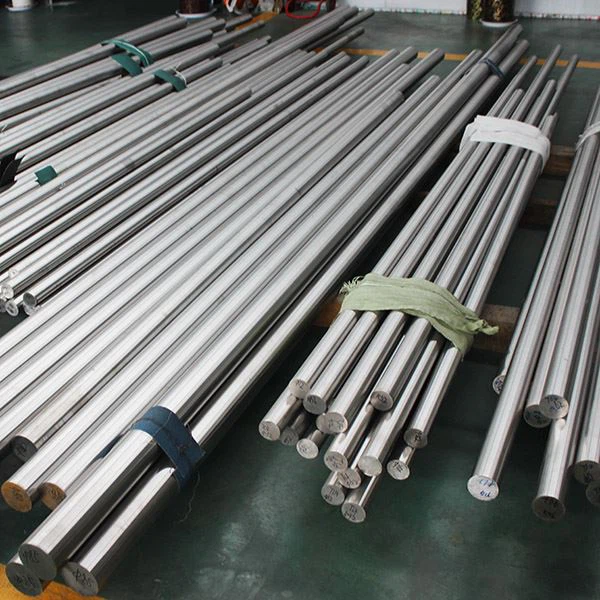

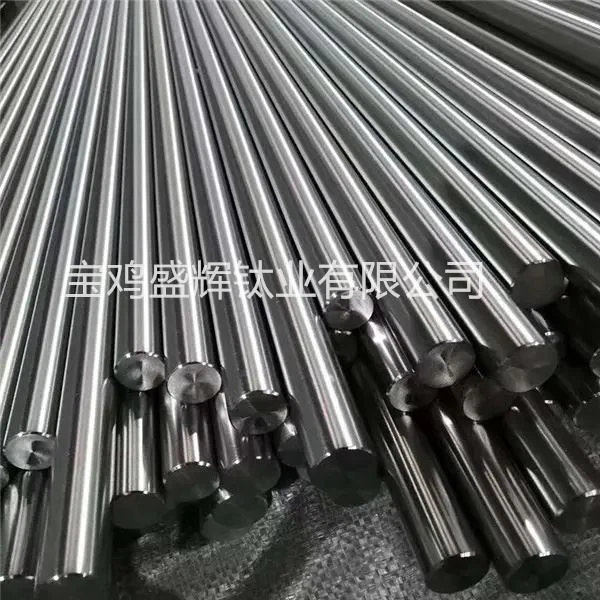

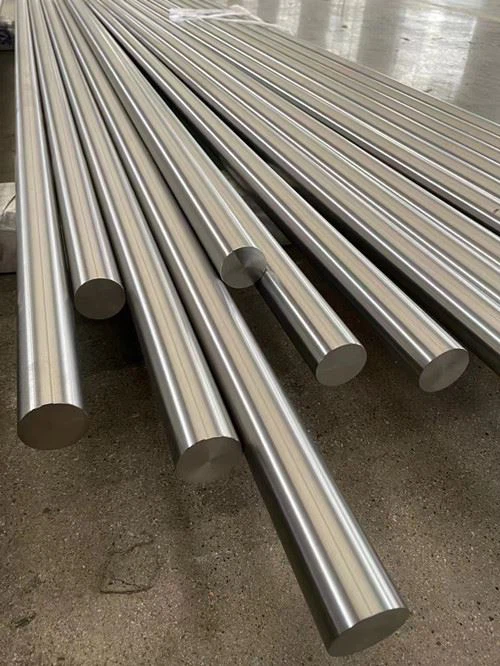

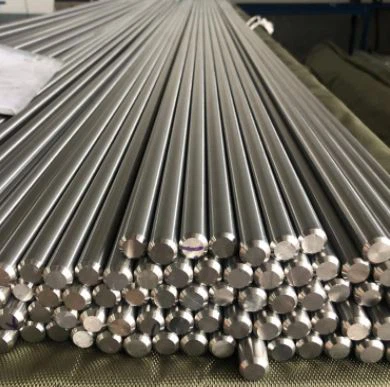

GR1 Titanium Square Bar

one. Pure titanium rods and titanium alloy rods are new structural materials. Because titanium has high melting point, small specific gravity, high specific strength, good toughness, fatigue resistance, acid and alkali corrosion resistance, low thermal conductivity, good high and low temperature resistance, It has the characteristics of small stress under the conditions of rapid cooling and rapid heating. It is used in high-tech fields such as aviation and aerospace, and has been continuously promoted to chemical, petroleum, electric power, seawater desalination, construction, daily necessities and other industries.

two. Common grades of titanium rods

National plate number: TA1, TA2, TA3, TA7, TA9, TA10, TA15, TA18, TC4, TC4ELI, TC6, TC9, TC10, TC11

American label: GR1, GR2, GR3, GR5, GR7, GR12

three. Titanium rod production process:

Hot forging - hot rolling - annealing and straightening - turning (polishing) - polishing - flat head - inspection - packaging

Four. Titanium rods perform common standards:

National standard: GB/2965-2007, GB/T13810

American Standard: ASTM B348, ASTM F136, ASTM F67, AMS4928

five. Titanium rod specifications: (diameter*length/mm): 6mm-250mm*L

six. Titanium rod supply state: hot working state, annealing state

seven. Reference Standard

1. GB 228 Metal Tensile Test Method

2. GB/T 3620.1 titanium and titanium alloy grades and chemical composition

3. GB/T3620.2 Chemical composition and composition tolerance of titanium and titanium alloy processed products

4. GB 4698 Sponge Titanium, Chemical Analysis Methods of Titanium and Titanium Alloys

Eight. Titanium rod technical requirements

1. The chemical composition of titanium and titanium alloy bars shall comply with the provisions of GB/T 3620.1, and when repeated tests are required, the allowable deviation of the chemical composition shall comply with the provisions of GB/T 3620.2.

2. The diameter or side length of the hot-worked bar and its allowable deviation should comply with the corresponding regulations.

3. After hot processing, the bar is turned (ground) and cold-rolled, and the allowable deviation of the diameter of the cold-drawn bar should meet the industry regulations.

4. The out-of-roundness of the bar that has been turned (ground) after hot processing should not be greater than half of its dimensional tolerance.

Nine. use:

Aerospace, aviation, navigation, ships, desalination, petroleum, chemical industry, mechanical equipment, nuclear power equipment, power equipment, automobile and motorcycle parts, sports and leisure, medical parts, steel and metallurgy, high-tech fields.
