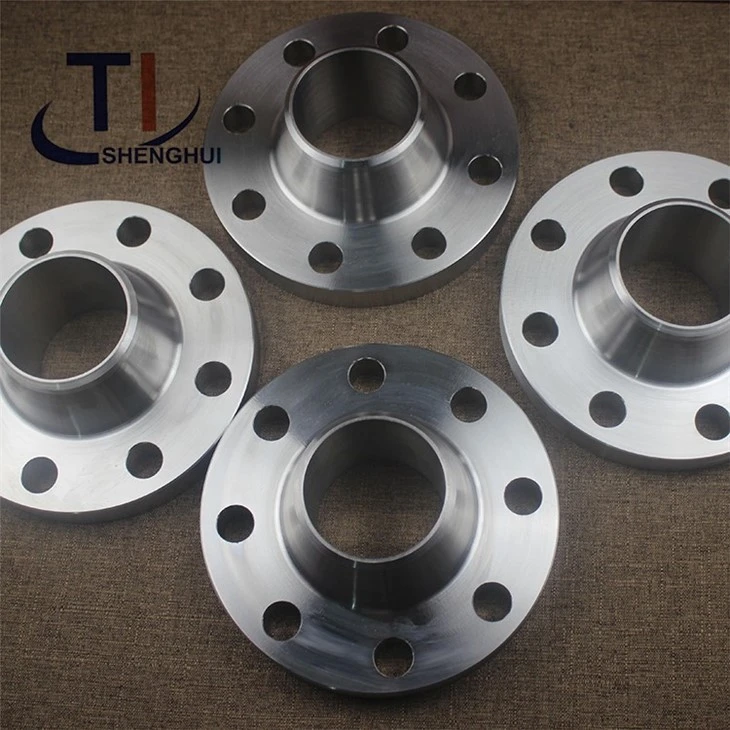

DIN 86030 Titanium Weld Neck Flanges
1.DIN 86030 is a standard that defines the dimensions and technical requirements for titanium weld neck flanges used in pipelines and pressurized systems.
2.These flanges are designed to be welded to pipes or fittings and provide a strong and reliable connection.
3.They are made of high-quality titanium material and are resistant to corrosion and erosion in harsh environments.
Product Introduction
Description of DIN 86030 Titanium Weld Neck Flanges
DIN 86030 is a standard that specifies the dimensions and technical requirements for titanium weld neck flanges. These flanges are primarily used in high-temperature and high-pressure applications in chemical and petrochemical industries, oil and gas, and other industrial processes.
The DIN 86030 Titanium Weld Neck Flanges feature a raised face with a tongue and groove or ring joint design. The flange's neck is welded to a pipe or vessel, creating a strong and leak-proof connection.
The key features of DIN 86030 Titanium Weld Neck Flanges include:
1. Material: These flanges are made of titanium, a corrosion-resistant and lightweight metal that is ideal for high-temperature and high-pressure applications.
2. Size range: DIN 86030 flanges come in a size range from DN 15 to DN 500, or 1/2" to 20".
3. Pressure ratings: The flanges have standard pressure ratings ranging from PN 6 to PN 100.
4. Design: The weld neck flanges have a raised face with a tongue and groove or ring joint design. The neck is welded to a pipe or vessel, creating a strong and leak-proof connection.
5. Standards: DIN 86030 flanges conform to the standard DIN EN 1092-1, which specifies the dimensions and technical requirements of steel and titanium flanges.
DIN 86030 Titanium Weld Neck Flanges are high-quality flanges that are suitable for high-temperature and high-pressure applications. They are available in a range of sizes and pressure ratings and conform to the DIN EN 1092-1 standard.
DIN 86030 Standard Requirements for Titanium Weld Neck Flanges
1. Material: The flanges must be made from titanium, according to DIN 17861.
2. Dimensions: The flanges must conform to the specified dimensions for the relevant pipe size and pressure rating.
3. Pressure rating: The pressure rating must be specified to match the requirements of the application.
4. Flange face finish: The flange face finish must be in accordance with the specified standards (e.g. raised face or flat face).
5. Welding parameters: The welding parameters must be specified, and welding must be carried out according to the approved procedure.
6. Testing: The flanges must undergo non-destructive testing, including visual, radiographic, and ultrasonic examinations, to confirm dimensional accuracy and structural integrity.
7. Marking: The flanges must be marked with relevant information including material grade, pressure rating, and heat number.
DIN 86030 sets out strict requirements for the manufacture and testing of titanium weld neck flanges, ensuring that they are suitable for use in demanding applications where corrosion resistance and high strength are critical factors.
