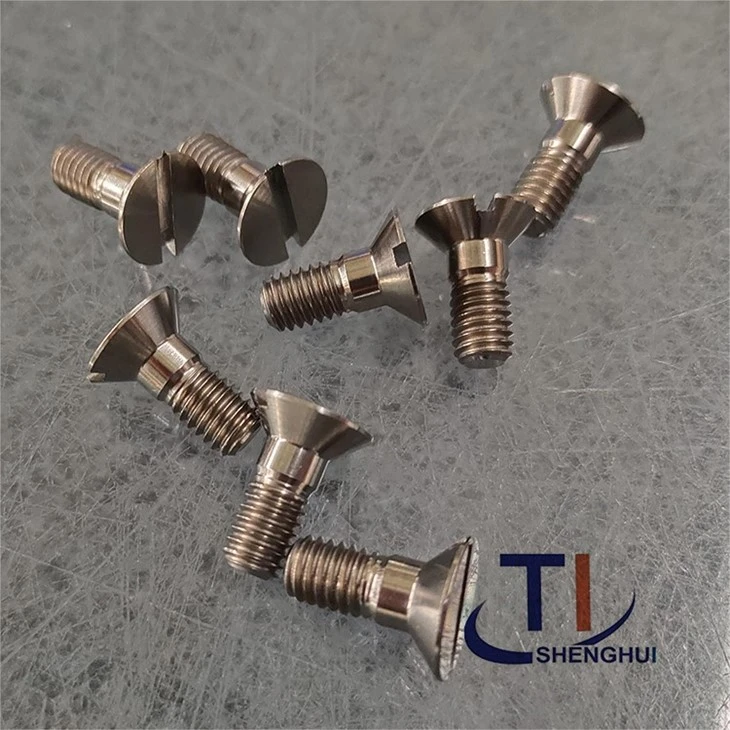

ASME B18.6.3 Titanium Slotted Countersunk Screws
1.ASME B18.6.3 is a standard that defines the specifications for titanium slotted countersunk screws.
2.These screws are used in applications where high strength and corrosion resistance are required, such as in the aerospace and medical industries.
3.They feature a slotted head design for easy installation and removal.
3.Titanium targets offer excellent corrosion resistance, thermal stability and are biocompatible, making them ideal for use in sensitive applications like medical implants.
Product Introduction
Description of ASME B18.6.3 Titanium Slotted Countersunk Screws
ASME B18.6.3 sets the standard for Titanium Slotted Countersunk Screws. These screws are produced from titanium, which is a lightweight and extremely durable metal that offers excellent resistance to corrosion.
The term "countersunk" means that the head of each screw is shaped to fit within a tapered recess, so that it is flush with the surface of the material being screwed into. The slotted design of the head allows for a screwdriver or other tool to be inserted and turned to tighten or loosen the screw.
The standard covers a range of sizes for these screws, and specifies the dimensions and tolerances for the various components of the screw. It also outlines the requirements for marking and packaging of the screws.
Standard of ASME B18.6.3 Titanium Slotted Countersunk Screws
ASME B18.6.3 is a standard for Titanium Slotted Countersunk Screws. The standard specifies the physical dimensions, material requirements, and performance requirements of these screws. Here are the key specifications laid down in the standard:
1. Material: Titanium Grade 2 or Grade 5
2. Size range: #2 through 1"
3. Thread type: UNRC (Unified National Coarse Thread)
4. Head style: 82-degree countersunk head
5. Drive style: Slotted drive
6. Thread length: Full thread or partial thread (depending on the screw length)
7. Thread fit: Class 2A for external threads and Class 3A for internal threads
8. Surface finish: The screws should have a clean and smooth surface, without any sharp edges, burrs, or cracks.
9. Performance requirements: The screws must be able to withstand a specified torque load without breaking or stripping the threads.
Overall, ASME B18.6.3 is a detailed and comprehensive standard that defines the characteristics and performance of Titanium Slotted Countersunk Screws.
